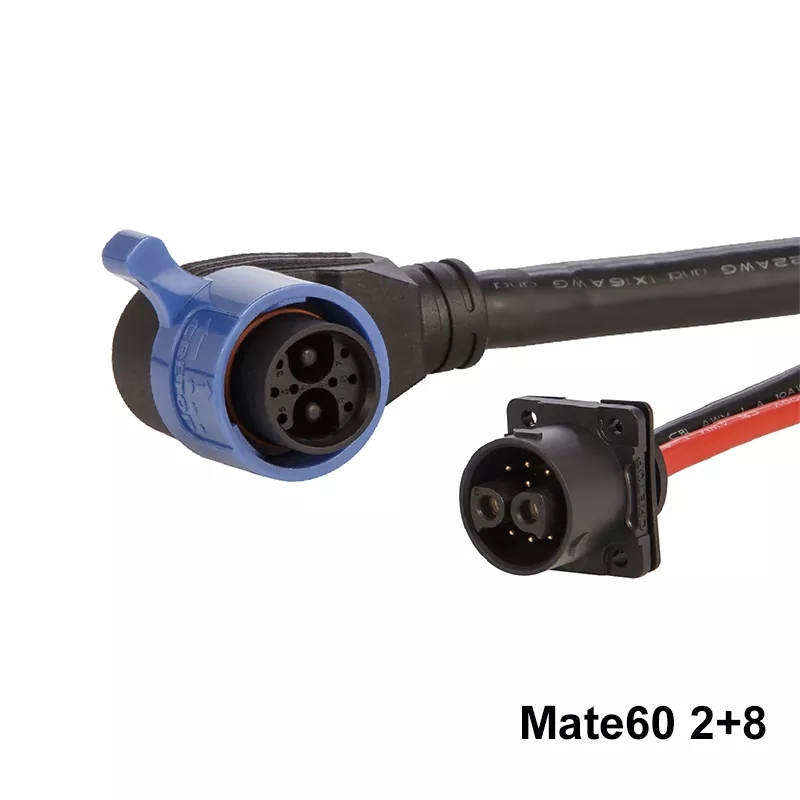

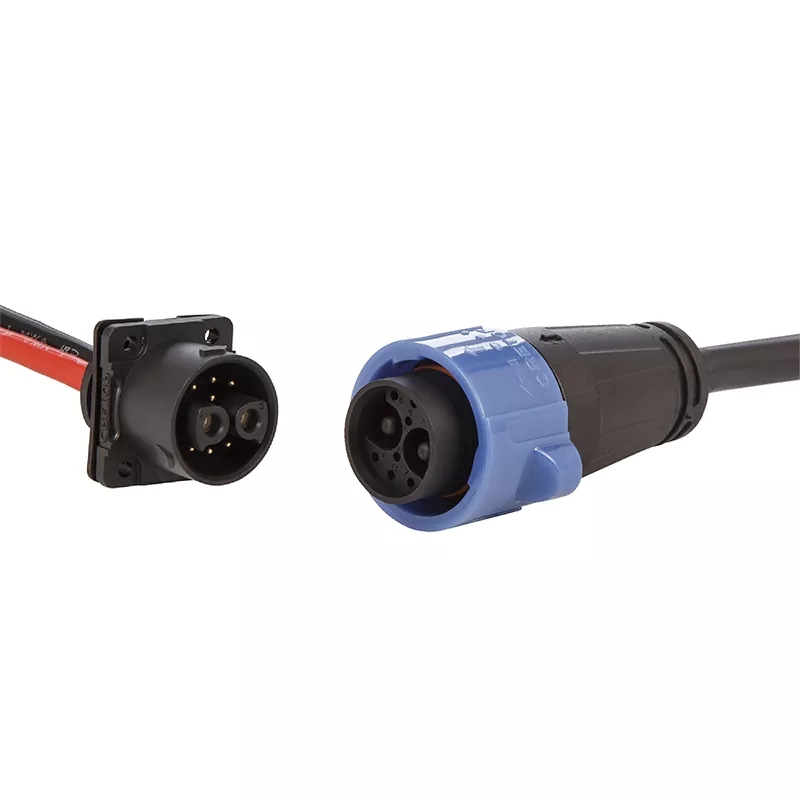

2+8Pin E-Scooter Battery Connector

As a professional 2+8Pin E-Scooter Battery Connector manufacturer, CRETOP® can provide connectors in a wide variety of harsh-industrial and outdoor applications in the areas of Electric Bike, Electric Motorcycle, Industrial Automation, Marine Electronics, Renewable Energy, New Energy Vehicles, Engineering Machinery, and other emerging industries. So far, we have provided 2+8Pin E-Scooter Battery Connector customization services for many cooperative customers with special needs.

Send Inquiry

Product Description

CRETOP® manufacture 2+8Pin E-Scooter Battery Connector many years in China. 2+8Pin E-Scooter Battery Connector use three points push-lock locking mechanism, you can plug in & out easy and smoothly. Meanwhile, the 2+8Pin E-Scooter Battery Connector’s locking nut is with hand grip, can be easy accessed. You can also choose different locking rings. Anti touch technology makes the connector use more safe. CRETOP® 2+8Pin E-Scooter Battery Connector is compact, fully reduce the bending space. CRETOP® use the latest inspection and quality control techniques to ensure that all our connectors meet our customers’ exact specifications.

2+8Pin E-Motorcycle Connector Specifications

Model No.	Mate60 2+8
Mating Cycle	≥3000 Times
Pullout Force	<100N
Wire processing	Crimping
Rating Voltage	80V DC
Rating Current	50A
Peak Current	Power 80A 60S
Withstand Voltage	1500V AC
Insulation Resistance	>100MΩ
Operating Temperature	-40°C~105°C
IP Rating	IP67 Mated & Unmated
Salt Spray	48h
Flammability Rating	UL94V-0
Shell	High strength thermoplastic resin
Sealing	Silicone Rubber
Conductor	Copper Alloy, Sliver/Gold Plated
