3+6Pin Motor Connector
CRETOP is a leading manufacturer, supplier and exporter of 3+6Pin Motor Connector in China. We can provide product design optimization, high performance and competitive prices. Of course, also indispensable is our perfect after-sales service. If you are interested in our Motor Connector, you can consult us now, we will reply to you in time.
Send Inquiry
Product Description

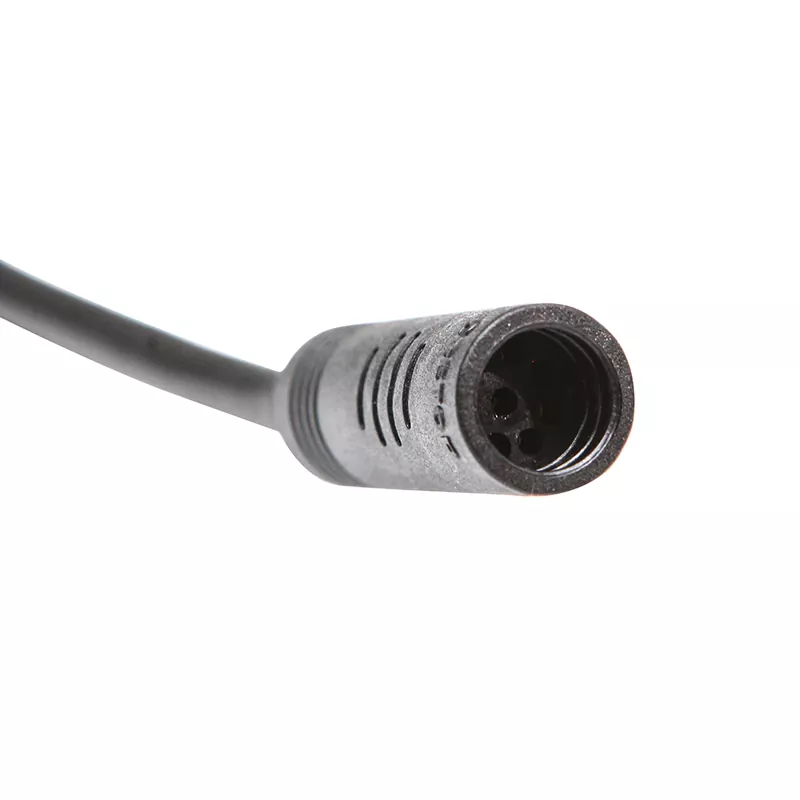

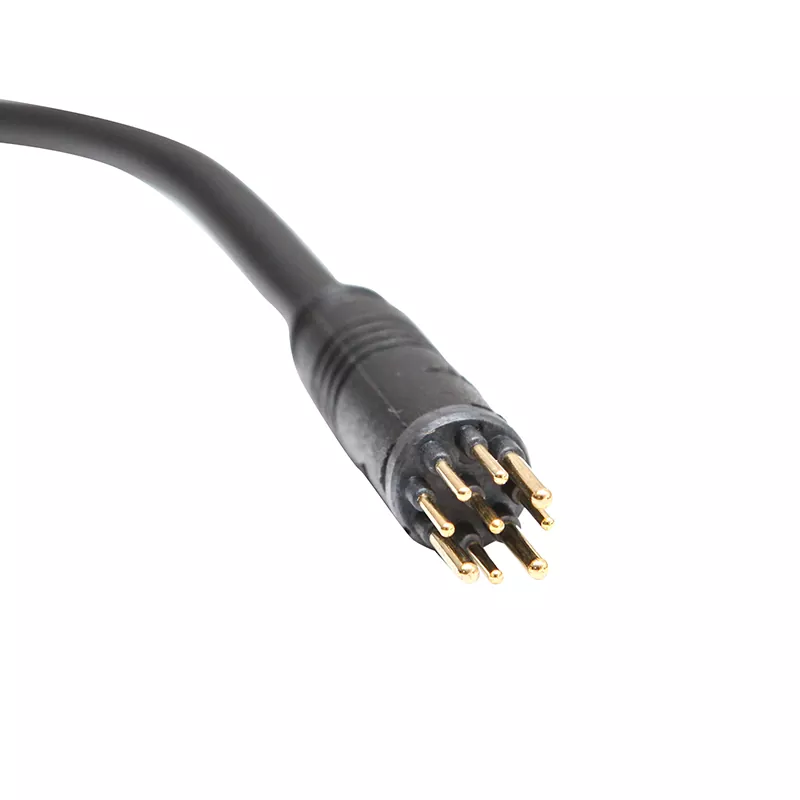

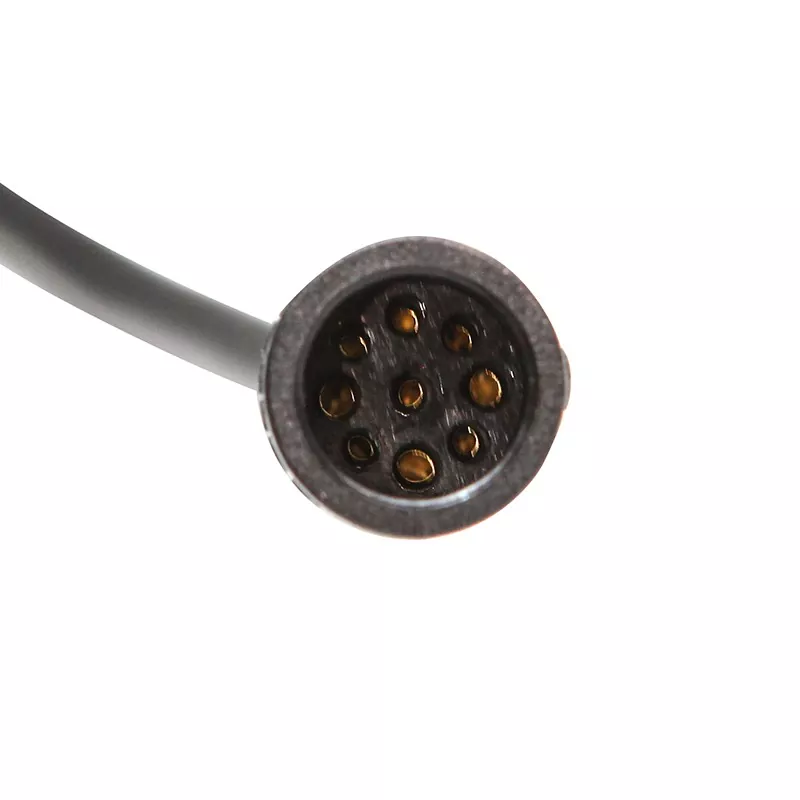

3+6Pin Motor Connector manufactured by CRETOP based in China, which can provide charging electric connection for E-bikes. This CRETOP connector can plug in & out quickly, easy operation.
3+6Pin Motor Connector is motor three-phase wires & signal wires combination. You can plug with protective cover, much more safer. All the materials match RoHS standard.
3+6Pin Motor Connector Specifications
|
Model No. |

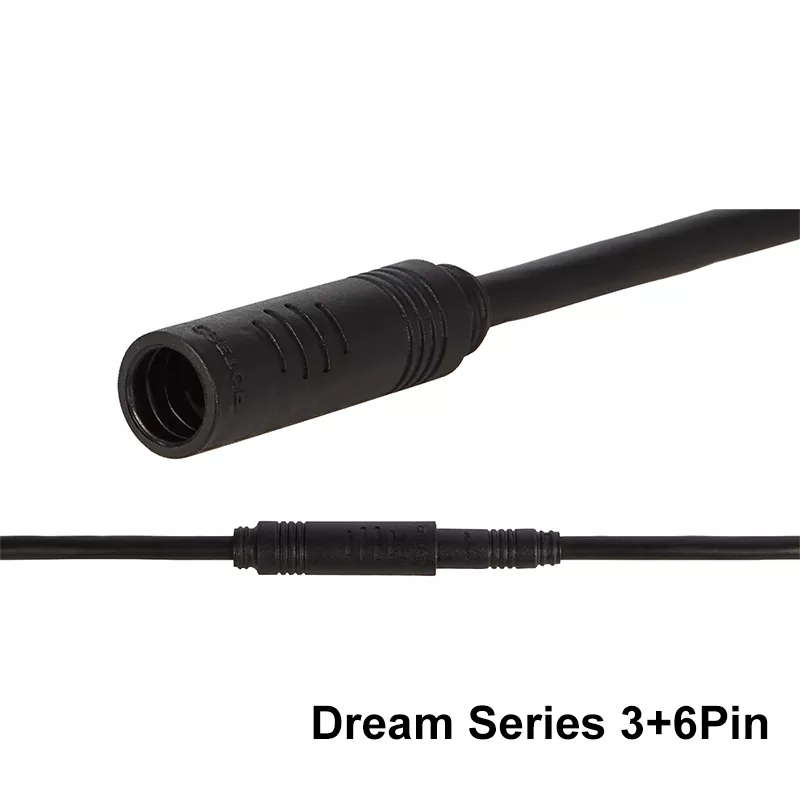

Dream Series 3+6Pin |
|
Mating Cycle |
≥200 Times |
|
Pullout Force |
<90N |
|
Wire processing |
Weld |
|
Rating Voltage |
48V AC |
|
Rating Current |
15A |
|
Peak Current |
power18A 30S |
|
Withstand Voltage |
700V AC |
|
Insulation Resistance |
>20MΩ |
|
Operating Temperature |
-25°C~80°C |
|
IP Rating |
IP66 Mated |
|
Salt Spray |
48h |
|
Flammability Rating |
UL94V-0 |
|
Shell |
Nylon |
|
Conductor |
Copper Alloy, Gold Plated |
|
Wire Gauge |
Max3*16AWG/1.5mm² +6* 26AWG/0.14mm² |
