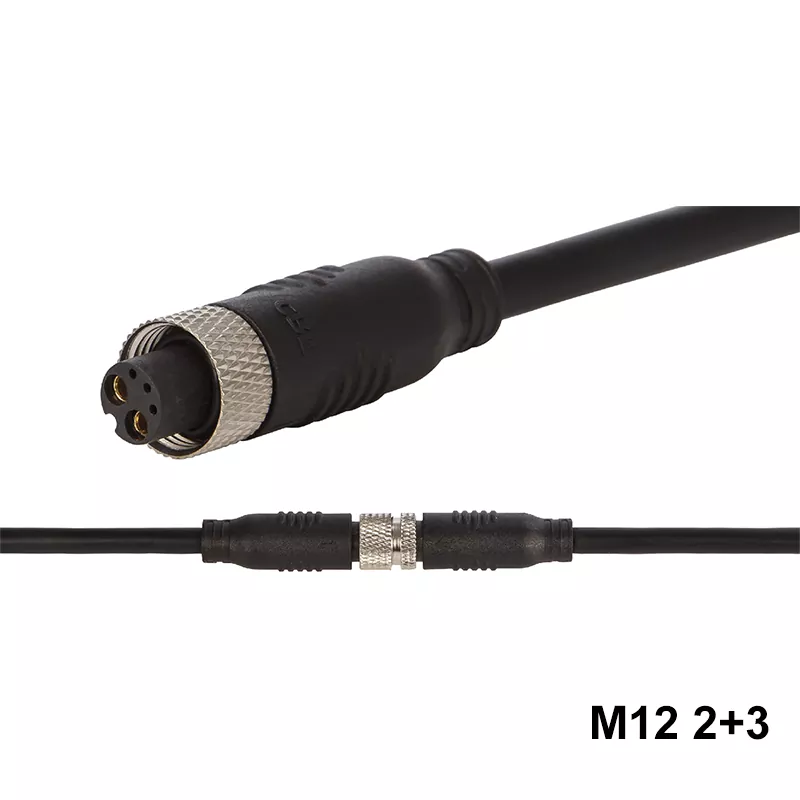

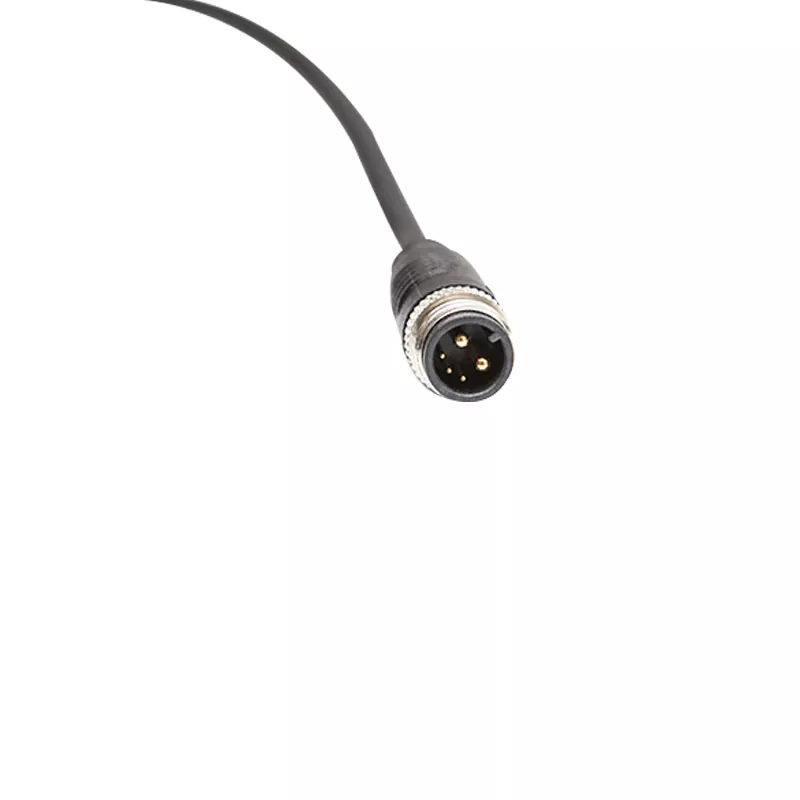

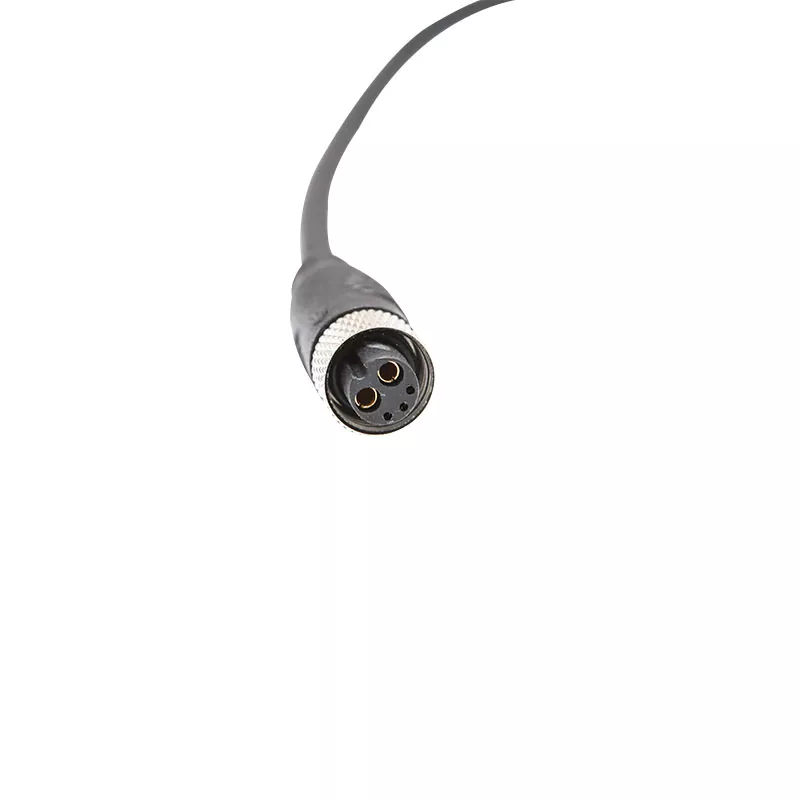

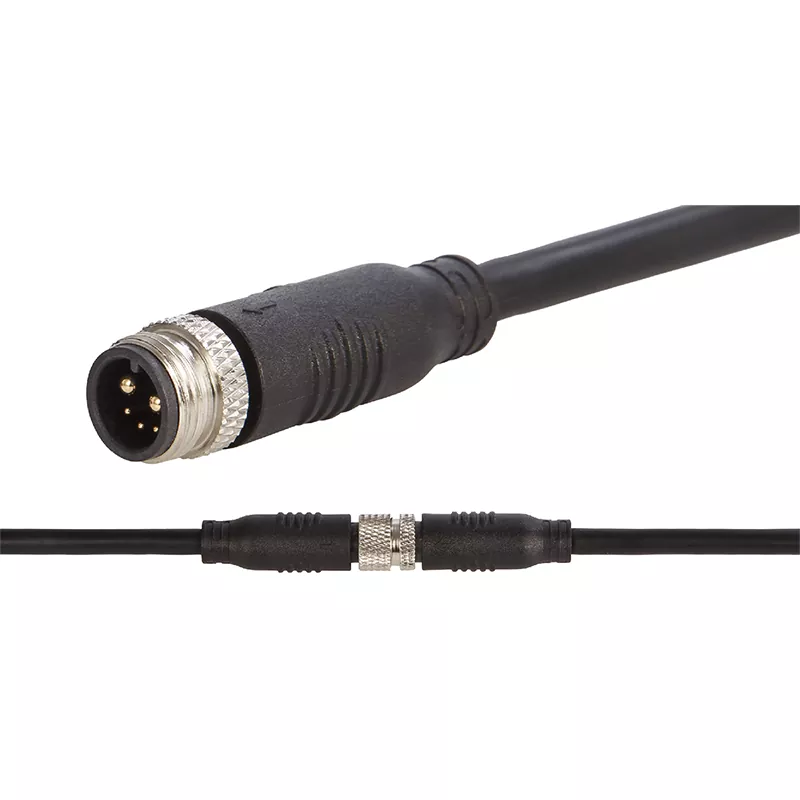

E-Bike Charging and Discharging Connector
Introducing CRETOP E-Bike Charging and Discharging Connector, a Ningbo-based industry and trade integrated enterprise established in 2011. CRETOP Connector specializes in the research and development, production, and sales of E2W connectors, providing customization, production, and sales services for E-Bike Charging and Discharging Connector.
Send Inquiry
Product Description
Manufacturer by CRETOP, E-Bike Charging and Discharging Connector has metal nut connection, which is feel smooth. E-Bike Charging and Discharging Connector’s overmolding structure is clean & flexible. CRETOP has a professional R & D team, advanced production equipment and strict quality control ability. We can provide customers with complete solutions and non standardized customization. The company caters to customers worldwide, delivering reliable and innovative connectivity solutions that meet the demands of various industrial applications. The company has gained a competitive edge in the market by remaining ahead of the curve in product innovation and development.
E-Bike Charging and Discharging Connector Specifications
|
Model no. |
M12 2+3 |
|
Mating Cycle |
≥200 Times |
|
Pullout Force |
<100N |
|
Wire processing |
Weld |
|
Rating Voltage |
250V DC |
|
Rating Current |
15A |
|
Withstand Voltage |
1500V AC |
|
Insulation Resistance |
>500MΩ |
|
Operating Temperature |
-40°C~+85°C |
|
IP Rating |
IP67 |
|
Salt Spray |
48h |
|
Flammability Rating |
UL94V-0 |
|
Shell |
High strength thermoplastic resin |
|
Sealing |
Silicone Rubber |
|
Conductor |
Copper Alloy, Sliver/Gold Plated |
|
Wire Gauge |
Max 14AWG/2.0mm² |
