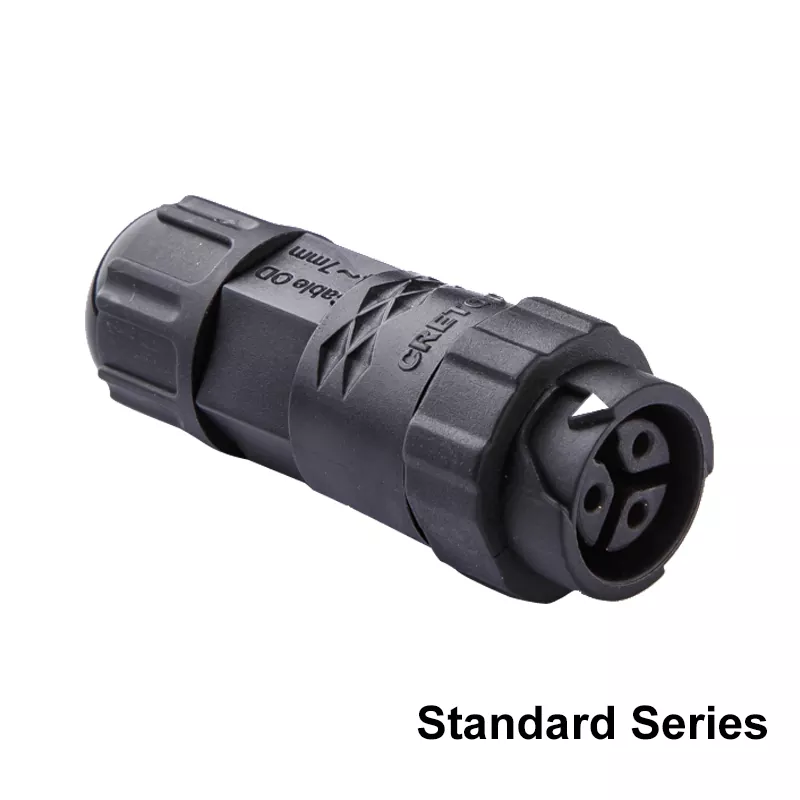

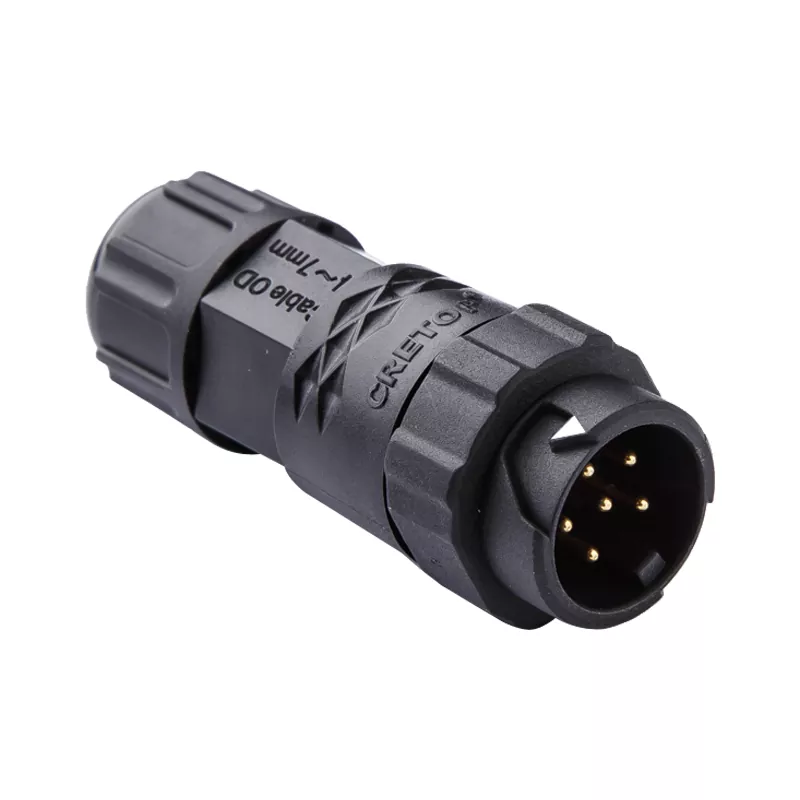

Outdoor Smart Energy Electric Meter Connector
With years of experience in production Outdoor Smart Energy Electric Meter Connector, CRETOP can supply a wide range of Outdoor Smart Energy Electric Meter Connector. You can rest assured to buy Outdoor Smart Energy Electric Meter Connector from our factory and we will offer you the best after-sale service and timely delivery. All our connectors are RoHS compliant. We also offer options to meet any special requests, please kindly contact our sales representative if you have any questions.
Send Inquiry
Product Description
Factory of Outdoor Smart Energy Electric Meter Connector Made in China with low price. The
Outdoor Smart Energy Electric Meter Connector can provide signal connection for smart water meter/smart meter. This connector has threaded compression structure, wing lock ring.
You can prefabricated assemble the connector. Long lifespan and 3-5 years warranty.
Poka-yoke design makes you easily to assemble it. Besides, this Outdoor Smart Energy Electric Meter Connector is anti UV, you can use it at harsh environments.
Outdoor Smart Energy Electric Meter Connector Specifications
|
Model No. |
Mini 4Pin |
|
Mating Cycle |
≥200 Times |
|
Pullout Force |
<30N |
|
Wire processing |
Crimping |
|
Rating Voltage |
60V DC |
|
Withstand Voltage |
500V AC |
|
Insulation Resistance |
20MΩ |
|
Operating Temperature |
-40°C~105°C |
|
IP Rating |
IP68 |
|
Salt Spray |
96h |
|
Flammability Rating |
UL94V-0 |
|
Shell |
High strength thermoplastic resin |
|
Sealing |
Silicone Rubber |
|
Conductor |
Copper Alloy, Gold Plated |
|
Cable |
22AWG |
